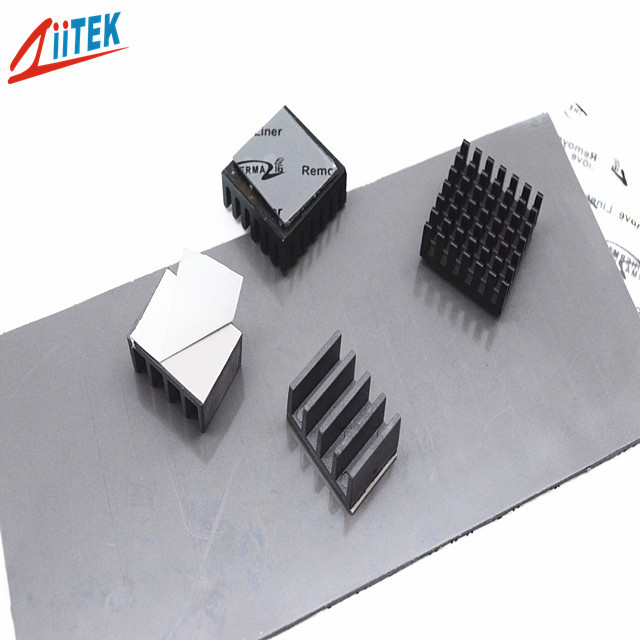

Dark Gray Soft 8.0W/MK Silicone Thermal Conductive Pad For Computer CPU GPU Heat Dissipation
Product Overview
The TIF®100-H80-11E Series is a high-end compressible thermal pad designed to meet top-level cooling requirements while maintaining excellent assembly workmanship. Through innovative material formulation, it achieves an ideal combination of ultra-high thermal conductivity and moderate hardness, efficiently handling cooling challenges from ultra-high heat flux densities while providing good mechanical strength and compressibility.
Manufacturer Profile
Ziitek is a high-tech enterprise dedicated to the R&D, manufacture, and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions.
Product Range:
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Compliance: All products comply with UL94 V-0, SGS and ROHS standards.
Key Features
- Excellent thermal conductivity
- Moldability for complex parts
- Soft and compressible for low stress applications
- Naturally tacky - no additional adhesive coating required
- Available in various thicknesses
- Broad range of hardness options
Applications
- Cooling components to chassis or frame
- High-speed mass storage drives
- Heat sinking housing at LED-lit BLU in LCD
- CPU and display card cooling
- Motherboard and notebook applications
- Power supply thermal management
- Heat pipe thermal solutions
- Memory modules and mass storage devices
- Automotive electronics
- Set-top boxes
- Audio and video components
Technical Specifications
| Property | Value | Test Method |
| Color | Dark Gray | Visual |
| Construction & Composition | Ceramic filled silicone elastomer | - |
| Density (g/cm³) | 3.5 | ASTM D792 |
| Thickness Range (inch/mm) | 0.020~0.030 | 0.040~0.200
0.50~0.75 | 1.00~5.00 | ASTM D374 |
| Hardness (Shore 00) | 60 | 35 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | - |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @ 1HMz | 6.5 | ASTM D150 |
| Volume Resistivity | ＞1.0×10¹² Ohm-meter | ASTM D257 |
| Flame Rating | V-0 | UL 94 (E331100) |
| Thermal Conductivity | 8.0 W/m-K | ASTM D5470 / ISO22007 |
Product Specifications
Standard Thickness: 0.020" (0.50 mm) ~ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16" × 16" (406 mm × 406 mm)
Component Codes:
- Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
- Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Company Culture
Quality: Do it right the first time, total quality control
Effectiveness: Work precisely and thoroughly for effectiveness
Service: Quick response, on-time delivery and excellent service
Team Work: Complete teamwork across all departments to provide satisfying service for customers
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer based in China.
How long is your delivery time?
Generally 3-7 work days if goods are in stock, or 7-10 work days if not in stock, depending on quantity.
Do you provide samples? Is it free or extra cost?
Yes, we offer samples free of charge.
